INCUBATORE REFRIGERATO
Refrigerating incubator

MPM Instruments

    Home

Incubatore refrigerato - Refregerating incubator
Accessori a richiesta - Accessories
MODELLO MODEL COD.

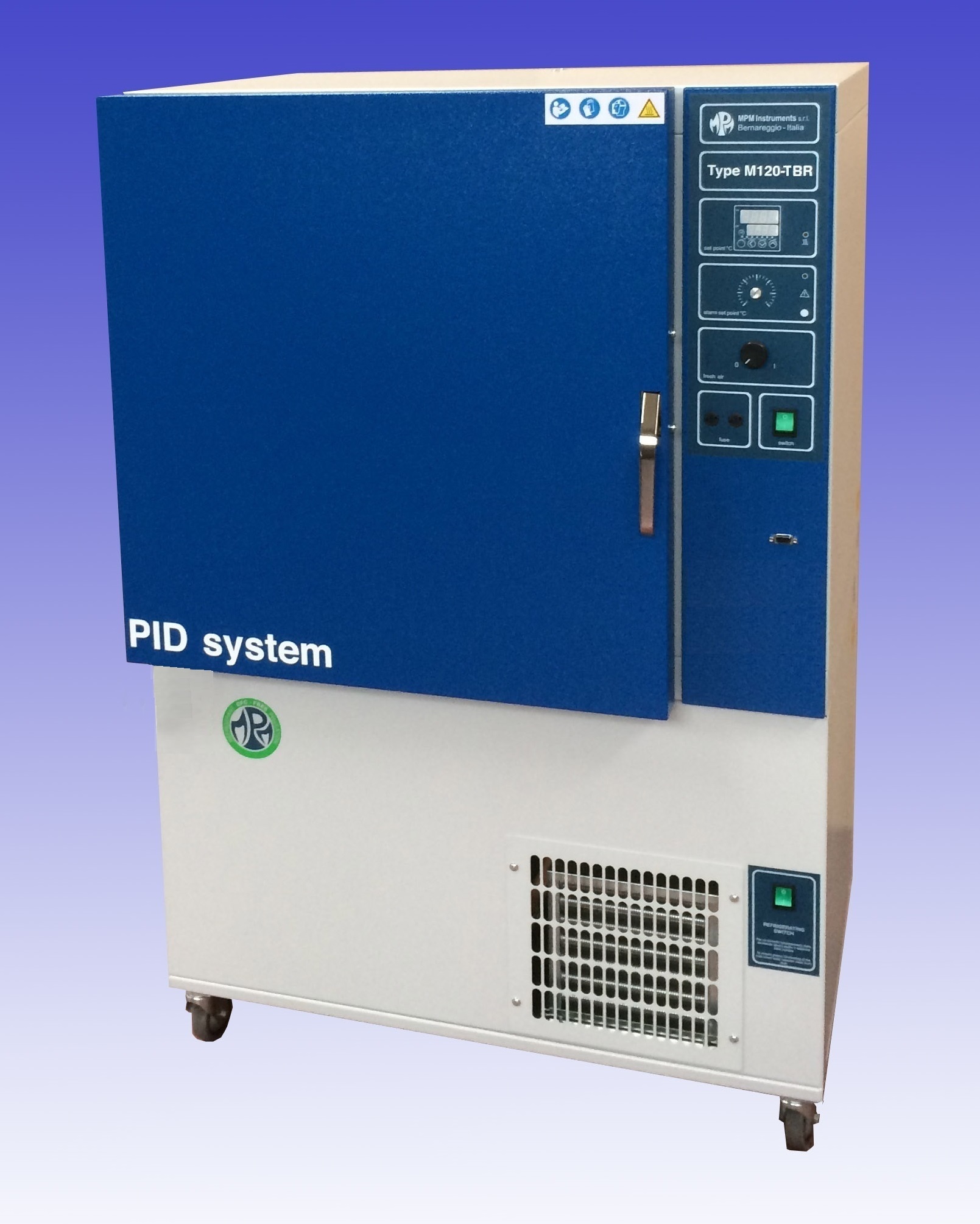

M120-TBR 04.3104
M250-TBR

      04.3106



Caratteristiche tecniche

  • Incubatore ad alto contenuto tecnologico adatto a tutte le applicazioni di incubazione dove necessita di lavorare ad una temperatura inferiore all'ambiente mantenendo un'ottima precisione.

  • Struttura esterna in acciaio trattata con vernice epossidica antiacido.

  • Struttura interna in acciaio inox AISI 304 con angoli arrotondati.

  • Porta a doppio isolamento dotata di guarnizione in gomma siliconica per garantire un ottima tenuta.

  • Porta interna in cristallo per ispezionamento.

  • Isolamento termico con poliuretano.

  • Gruppo frigorifero ecologico.

  • Ventilazione interna per stabilizzare ulteriormente la temperatura.

  • Controllo della temperatura tramite termoregolatore digitale P.I.D. per garantire una buona stabilità.

  • Range di temperatura da +3°C a +80°C. Precisione ± 0,5°C a 37°C. Precisione display ± 0,1°C.

  • Per un'ulteriore protezione l'apparecchio è dotato di un termostato di sicurezza con allarme visivo e ripristino manuale.

  • Ripiani interni antiribaltamento in acciaio regolabili in altezza.

  • Camino di sfiato con regolazione manuale del flusso.

  • Elementi riscaldanti non a contatto con la camera interna ma in pre camera per garantire un riscaldamento uniforme.

  • Interruttore generale bipolare con indicatore luminoso.

  • Alimentazione 230V-50Hz.

  • Classe 2, DIN 12880.



Technical specifications

  • Professional incubator ideal for all incubing applications particulary where the need to work delow room temperature is needed.

  • Outer body in steel coated in epoxy anti-acid paint.

  • Inner sructure in stainless steel AISI 304 with rounded corners.

  • Double insulation door with silicone seal to prevent heat loss.

  • Internal door in crystal for easy inspectioning.

  • Thermal insulation with polioretano.

  • Fridge with ecologic gas.

  • Internal ventilation for further stabilizing the themperature.

  • Digital display P.I.D. Thermostat to ensure good stability.

  • Temperature range from +3°C  to +80°C. Accurancy to ±0,5°C to 37°C. Display precision ±0,1°C.

  • For further protection the oven is equipped with visual allarm security thermostat and manual resetting.

  • Steel shelves adjustable in height.

  • Ventilation opening with manual flow control.

  • Heating elements are not in contact with internal chamber but are in an ante-chamber to guarantee uniform heating.

  • Illuminated two phase main swithc.

  • Power supply 230V-50Hz.

  • 2 class, DIN 12880.





MODELLO MODEL M120-TBR M250-TBR
COD. 04.3104 04.3106
DIMENSIONI INTERNE
INTERNAL DIMENSIONS
Volume (nominale) lt.
Volume (nominal) lt.
120 250
Larghezza mm.
Width mm.
498 593
Profondità mm.
Depth mm.
477 522
Altezza mm.
Height mm.
473 797
DIMENSIONI ESTERNE
EXTERNAL DIMENSIONS
Larghezza mm.
Width mm.
836 956
Profondità mm.
Depth mm.
680 730
Altezza mm.
Height mm.
1232 1392
Controllo della temperatura
Temperature
Display digitale - Digital display
Dotazione ripiani
Shelves included
2 2
Potenza W
Power W
900 1400
Frigorie in W a +5°C
W refrigeration to +5°C
197 200
Alimentazione V
Power supply V
230 230
Peso kg
Weight kg
80 120
